The "Ovens Dorigo" LG-MP4 models are designed for cooking with wood together with our gas burner that guarantees the highest yields at the lowest cost in the world market, positioned on the right, left or front to give maximum efficiency and for give the theatrical aspect.
The "Ovens Dorigo" LG-MP4 models are available in 4 versions.
They come assembled with the ability to dismount to get through each door more than 70 cm wide and can be moved with the cart, and in the case of removal can be dismantled and relocated to new premises.
We recommend this solution for the installation of 4 pieces in less than 3 hours by unskilled personnel using suitable lifting equipment recommended by us.

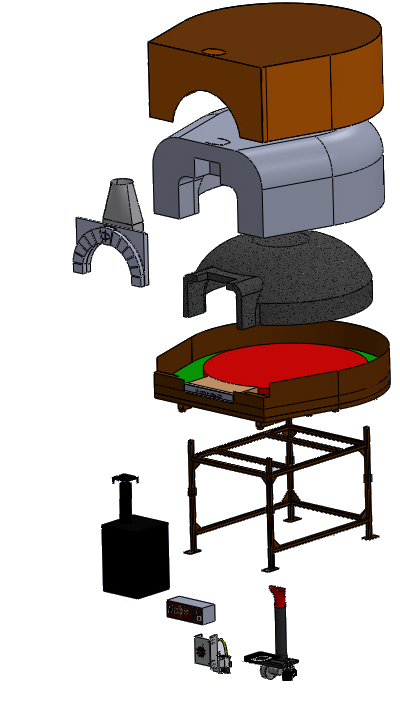

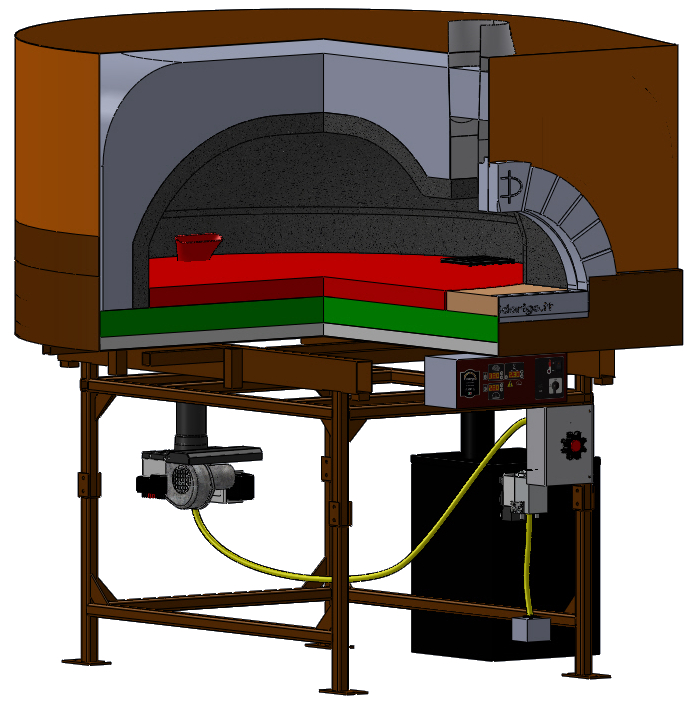

The "Ovens Dorigo" LG-MP4 models are supplied assembled and can be disassembled into 4 pieces: metal tank with insulation and stove in one piece from 80 mm, support structure robust, monolithic dome built in super high alumina refractory concrete vibrato that is positioned out of the plane and front arc on a metallic substrate with power draw and built-in hood, ceramic fiber insulation than 20cm thick, medium and hot metal, copper colored metal top cover ashlar.
The curvature of the monolithic dome has a spherical shape that provides maximum ventilation and combustion of wood or gas and is sheltered by a solid metal structure with a thickness of 4mm.
The height from the floor to the roof and firing 'of 44 cm and with the right relationship with the case leakage delivers significant energy savings and a' huge thermal resistance. In the model "ROME" l 'height and 48cm.
The hobs are in one piece with a thickness of up to 80mm and have a 100-115-145-165 cm in diameter by measuring the density of vibrated refractory material in hobs and in the gores of the domes provides a huge build-up of heat resulting in energy savings.
The deep sill and closed the walls ensures lower heat from escaping into the workspace of pizza and lower fuel consumption.

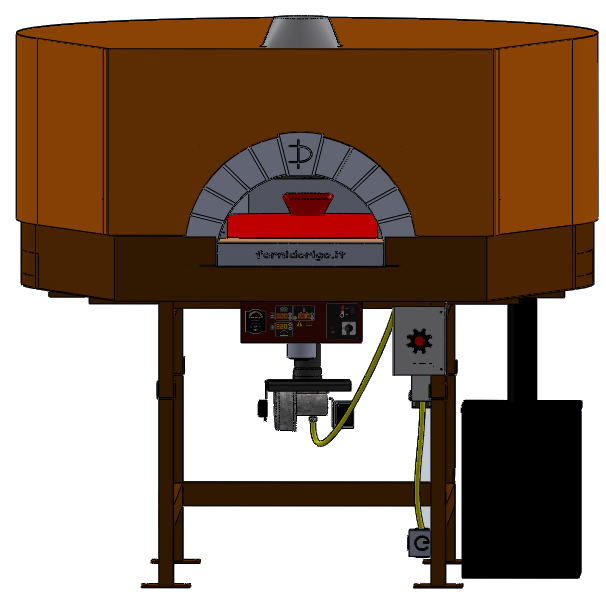

The width and '58 cm. the sill is covered and protected by a stainless steel plate bent. The front arc has a thickness of 10 cm and is' 80cm wide and 45cm high.
The flue gas connection has a width of 197mm.
The "Ovens Dorigo" LG-MP4 models are prepared for the installation of electrical resistance under the infrared cooker that reaches a temperature of 10 ° c to 220 ° c for 13 minutes.!
10 year warranty for the oven and 3 years for the gas burner.
