The "Ovens Dorigo" are designed to cook with wood to give maximum efficiency and flavor by adding the appearance theatrical.

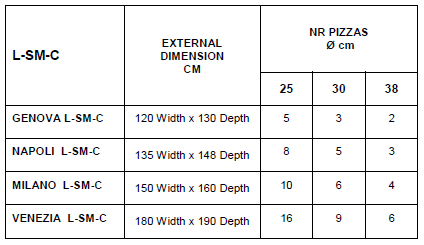

The "Ovens Dorigo" SM-C-L models are available in 4 versions and are supplied complete with all insulating materials, refractory furnace, metal roofing, metal support.
The ovens are delivered piece by piece in kit form and can be assembled by unskilled personnel in accordance with local laws.
We suggest this economic solution to not upset the local could join with the individual pieces through each port.

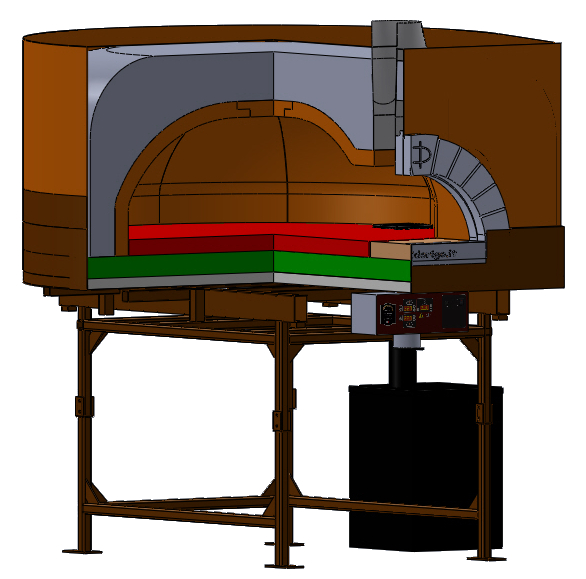

The oven and 'built in super high alumina refractory concrete vibrated and' consists of 4-7 segments located outside the area, the main bite with power draw built-in hob 4 pieces, 30 cm deep sill, smoke connection, arc front 10 cm thick, 2 lower insulation thickness of 12cm, ceramic fiber insulation above 20cm thick, medium and hot metal, copper colored metal top cover ashlar.
The slices are smooth and compact without the presence of air bubbles or porous material. are perfectly rounded and have a spherical shape that guarantees the maximum aerodynamic penetration of burning wood or gas are tapped for a perfect and infallible assembly that requires 6 to 8 hours.
The hobs are in 4 pieces and measures have to be 82-100-115-145 cm in diameter. fit perfectly the mouth for a replacement after 10 years leaving intact the refractory time.
The height from the floor to the roof and firing 'of 44 cm and with the right relationship with the case leakage delivers significant energy savings and a huge thermal resistance.
The deep sill and closed the walls ensures lower heat from escaping in the 'working area of the pizza and lower fuel consumption. in the model "GENOA" and the width 'of 44 cm. in all other models and 'of 58 cm. the sill is covered and protected by a stainless steel plate bent.

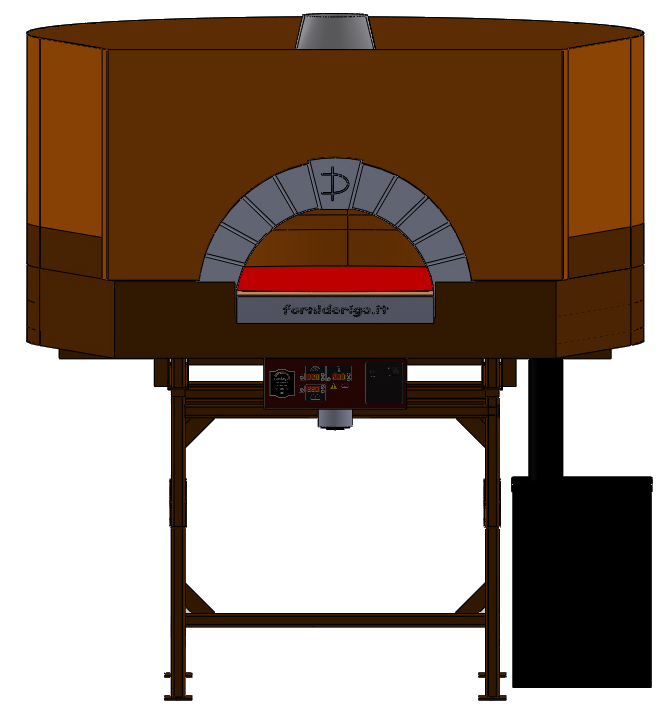

The front arc has a thickness of 10 cm and is' 66cm wide and 40cm high. in the model "GENOA", and while '80cm wide and 45cm high in all other models the density of vibrated refractory material in hobs and in the gores of the domes guarantees an enormous build up of heat resulting in energy savings.
The flue gas connection has a width of 197mm.
Warranty 10 years.
The "Ovens Dorigo" SM-C-L models are prepared for the installation of electrical resistance infrared below the hob and our special gas burner that guarantees the highest yields at the lowest cost in the world market.
